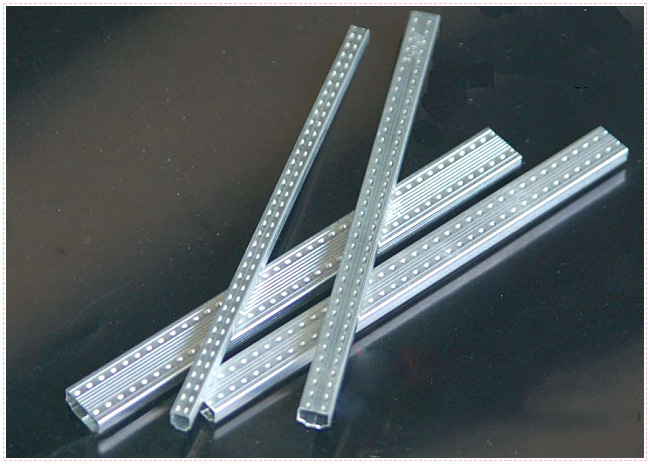

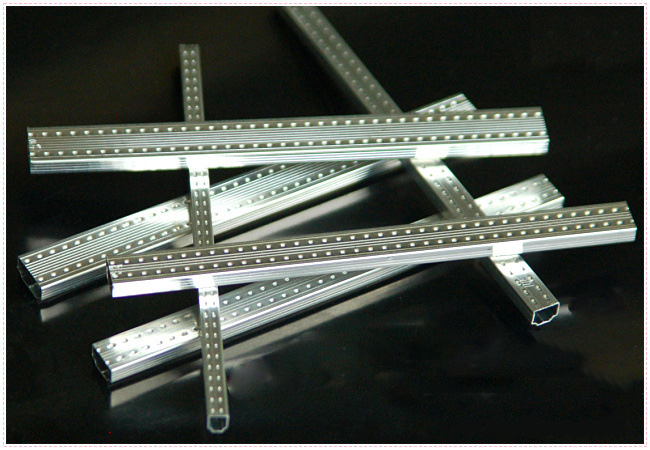

3003 H18 Hollow glass aluminium strip

3003 H18 Hollow glass aluminum strip
Special aluminum strip insulation for hollow glass

3003 H18 Hollow glass aluminum strip Features :
3003 H18 Hollow glass insulated aluminium strip ( hollow glass aluminum strip) is aluminium product with high purity aluminium materials, through surface treatment, no oxidation, no corrosion, no effect on desiccant, effective elimination of atomization.



3003 H18 Hollow glass aluminum strip specification :
4mm、5 mm、5.5 mm、6 mm、6.5 mm、7 mm、8 mm、9 mm、10 mm、11 mm、11.5 mm、12 mm、14 mm、14.5 mm、15 mm、16 mm、17 mm、18 mm、19 mm、20 mm、21 mm、27 mm etc. Aluminium fin stock strips, also can customized according to customer’s requirement.



3003 H18 Hollow glass aluminum strip technical requirement :
Wall thickness :
Single products wall thickness guarantee between 0.20mm-0.35mm, Extreme deviation of surrounding wall thickness is 0.025mm;
Benging angle :
Products not allow have hard benging, side bending ( except free drop benging angle );
Surface :
nice and smooth surface, without knock against, Stomatal regularity. 【3003 H18 hollow glass aluminum strip】



3003 H18 Hollow glass aluminum strip packaging, marking, transporation and stock :

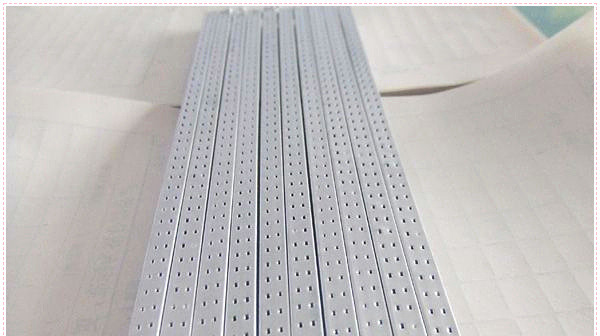

Packaging :
have paper box packaging and textile packaging, unit packaging each group weight 0.2kg ( textile with packaging ) ,20-25kg, 1.8kg (paper box packaging), require neat surface, straight, untwisted phenomenon, no leakage.  【3003 H18 hollow glass aluminum strip】

3003 H18 Hollow glass aluminum strip Identification :
Packaging surface clear identify product name, weight, manufacturer date, company name , address, quality identify etc.
Transporation :
This product is non-dangerous goods, cars, trains, planes all can be transporation.
Stock :
Should stock in dry area, waterproof, dramproof.
