5754 Aluminium Coil Strip

Current Position :Home/Alloy Strip Coil/5754 Aluminium Coil Strip

5754 Aluminium Coil Strip Description
5754 Aluminum Led Strip / Aluminium Strip Price in China

Alloy:5754
Temper:H111,H22,H32,H34,H112,H38,HO
Thickness:0.5mm-6.0mm
Width:100mm-2300mm
Standard production:ASTM-B-209M,BS EN 485-2,BS EN 573-3,GB/T3880-2008
MOQ:5 tons per size
Mother coil:DC
Weight:about 0.5-2.5mts per pallet
Surface:Mill finishing,checkered

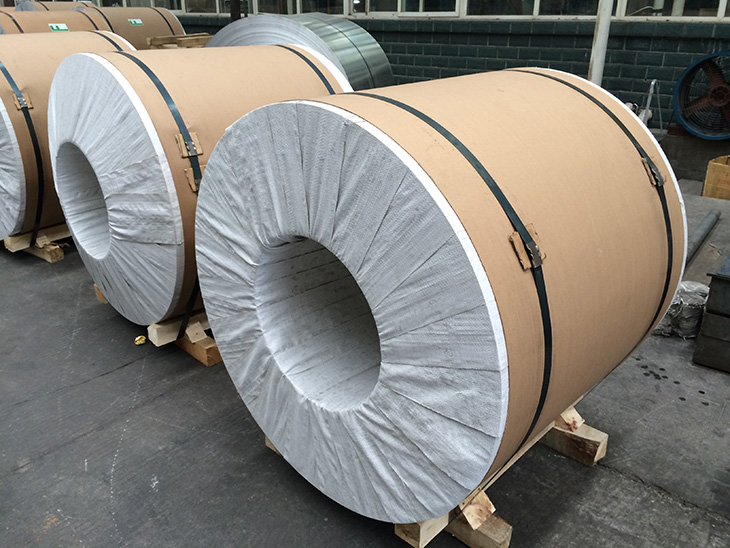

Package:Export standard package with wooden pallet
Package way:Eye to wall or eye to sky
Delivery time:within 30days
Origin:Zhengzhou,China
Certificate: Mill Test Certificate,Certificate of origin:Form A,Form E,CO
Regular size:1.0*1219*C,2.0*1220*C,3.0*1200*C,1.0*1200*C,2.5*1250*C,3.0*1500*C,2.0*1500*C

Chemical Properties -
5754 Aluminium Coil Strip

Alloy Designation Si Fe Cu Mn Mg Cr Ni Zn Ti Ga V Remarks Others Aluminium
min
Numerical Chemical Sympols Each Total
EN AW
-5754
EN AW-
AI Mg3
0.4 0.4 0.1 0.5 2.6-3.6 0.3 - 0.2 0.15 - - 0.1-0.6
Mn+Cr
0.05 0.15 Remainder

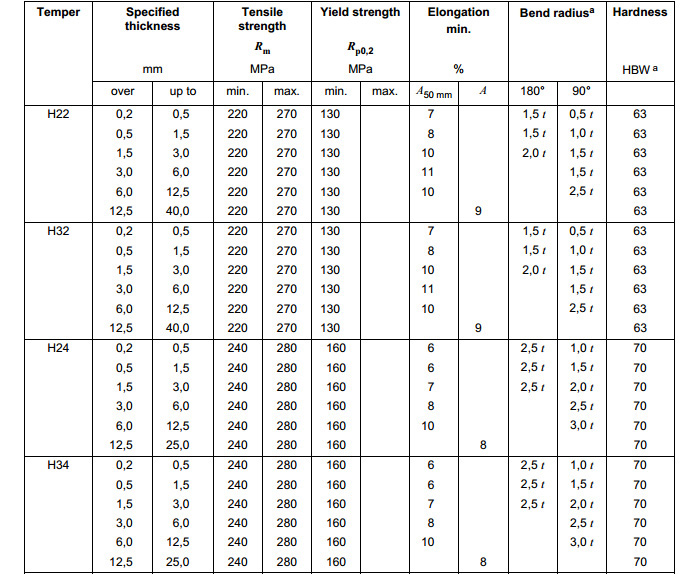

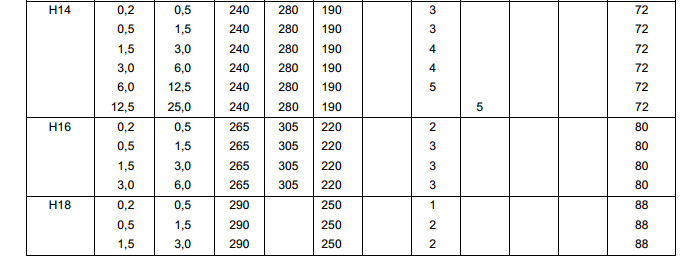

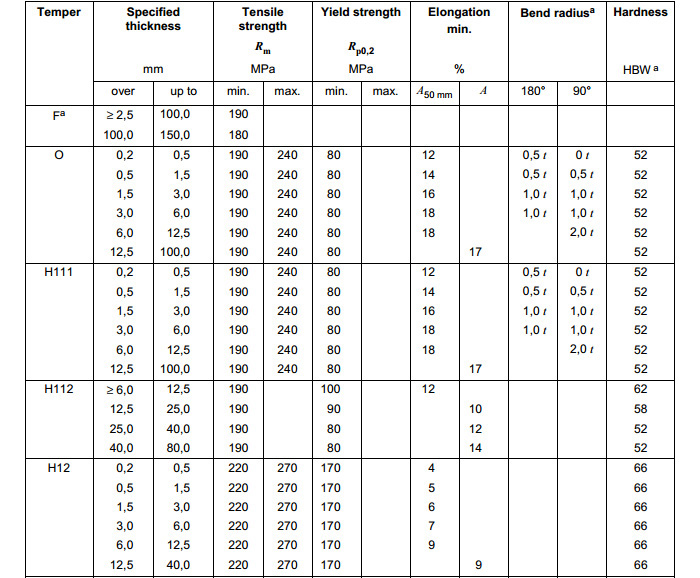

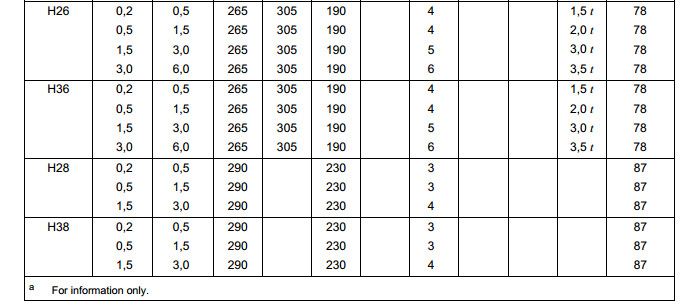

Mechanical Properties - 5754 Aluminium Coil Strip





5754 Aluminium Coil Strip Product Feature
-Moderate strength
-Good corrosion resistance
-Welding weldability
-Easy to processing molding
-Skid resistance

5754 Aluminium Coil Strip Application
1.Ships, vehicles and aircraft plate weldment ; the need for strict fire protection of pressure vessels,refrigeration equipment, tower, drilling equipment, transportation equipment, missile parts, plate armour;
2.used in electric machine components.Including:protective plate,protective box,capacitor box,tank of power capacitor,electrolytic condenser,variable of battery,volume shaft,loudspeaker framework,switch plate,semiconductor radiator,magnetic disk,motor frame,fan blade,electric cooker,cooling fin,heat sink ,etc.
3.Manufacturing trucks, tower building, ship, train, furniture, machinery parts, precision machining with the tubes, rods, shaped, sheet metal,wind power.
