1070 Aluminium Coil Strip Basic Info
1070 Aluminium coils / 1070 Aluminum coil suppliers / 1070 aluminum coils Manufacturers in China.
1070 Aluminium coils / 1070 Aluminum coil suppliers / 1070 aluminum coils Manufacturers in China.
Model NO.: 1070
Type: Aluminium Coil Strip
Application: Transportation Tools
Shape: Square
Grade: 1000 Series
Surface Treatment: Polished
Technique: Rolling
Alloy: Non-alloy
Temper: O - H112
Export Markets: South America, Southeast Asia, Africa, Mid East, Eastern Asia, Western Europe;
Additional Info - 1070 Aluminium Coil Strip
Trademark: Signi
Packing: Standard Export Pacakage
Standard: RoHS, SGS
Origin: Zhengzhou, China
Production Capacity: 8000mt/Year
EN AW-1070 Chemical Properties - Aluminum Coil Strip
EN AW-1070 Tolerance - Aluminium Coil Strip
EN AW-1070 Tolerance Burr And Collapse - Aluminium Coil Strip
EN AW-1070 Mechanical Properties - Aluminum Coil Strip
EN AW-1070 Specification - Aluminium Coil Strip
EN AW-1070 Chemical Properties - Aluminum Coil Strip
| Alloy Designation | Si | Fe | Cu | Mn | Mg | Cr | Ni | Zn | Ti | Ga | V | Remarks | Others |
Aluminium min |
||
| Numerical | Chemical Sympols | Each | Total | |||||||||||||
|
EN AW -1070A |
EN AW- AI 99.7 |
0.20 | 0.25 | 0.03 | 0.03 | 0.03 | - | - | 0.07 | 0.03 | - | - | - | 0.03 | - | 99.70 |
EN AW-1070 Tolerance - Aluminium Coil Strip
| Alloy/Temper | 1070-O | ||||
| Thickness | 0.2-0.4 | 0.4-0.8 | 0.9-1.1 | 1.2-1.6 | 1.8-2.5 |
| Tolerance | ±0.01 | ±0.015 | ±0.02 | ±0.025 | ±0.03 |
| Width | ＜100 | 100-200 | 201-500 | 501-1250 | ＞1250 |
| Tolerance | ±0.1 | ±0.2 | ±0.2 | ±1 | ±2 |
EN AW-1070 Tolerance Burr And Collapse - Aluminium Coil Strip
| The width of aluminum strip | Burr’s height | Collapsed side’s height |
| ＜0.2 | 0.01 | ≥0.05-0.1 |
| 0.2-1.0 | 0.015 | |
| 1.1-1.5 | 0.02 | |
| ＞1.6 | 0.03 |
EN AW-1070 Mechanical Properties - Aluminum Coil Strip
| U.T.S: 60-95N/mm2 | Enlongation:＞25% |
| Density in 20℃: 2.703kg/dm3 | Max.resistance in 20℃: ≤0.02825Ωmm2/m |
EN AW-1070 Specification - Aluminium Coil Strip
| Alloy | Temper | Thickness/mm | Width/mm |
| 1070 | O | 0.08～3.0 | 16～1500 |
| Remark：other specification can do according to customer’s requirements. | |||
Characteristic & Advantages :
Low density, only 35% of iron;
Can be strengthened ;
Excellent formability;
Good corrosion resistance;
The Strength and ductility are stable;
Electric conduction and thermal conduction;
The polished surface has good reflectivity;
Usage:
Pure aluminum is used to produce Electrolytic capacitor, anti-acid container,Structural parts, industrial equipment and so on. With the process of poloshing or anodizing, the products could be used in various field, such as lighting, construction, home appliance, consumer electronics etc.

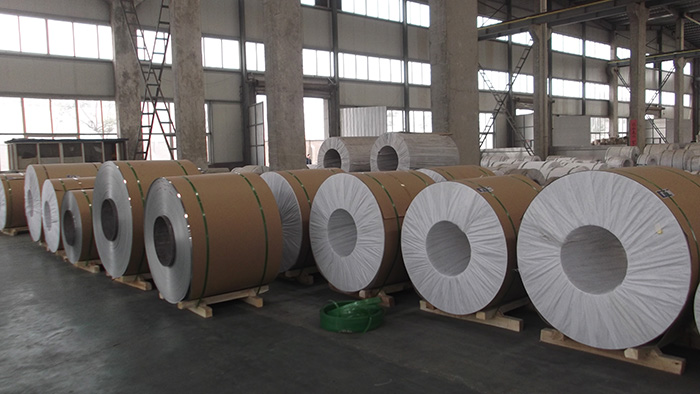

Packing
Protective film, Wood pallet, standard export pacakage.
