5005 Aluminium Coil Strip

Current Position :Home/Alloy Strip Coil/5005 Aluminium Coil Strip

5005 Aluminium Coil Strip made in China Description
5005 Aluminium Foil Strip / 5005 Aluminium Capping Strip in China


Alloy:5005
Temper:H34,H32,H111,H112,H114
Mother coil:DC
Thickness:0.5-6.0mm
Width:200-1700mm
Surface:clean and smooth,no bright speck,corrosion,oil,slotted,etc.
Weigth:about 2mt per pallet
MOQ:5tons per size
Package:export standard package,wooden pallet with fumigation

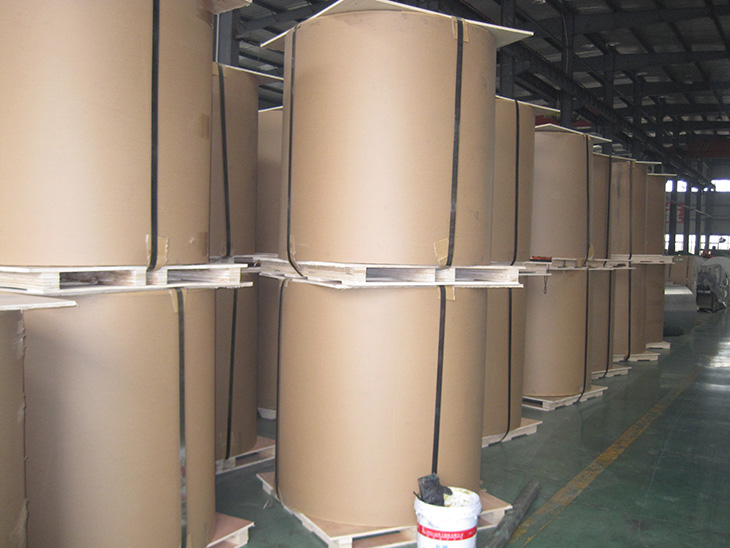

Package ways:Eye to sky or eye to wall
Delivery time:about 30days after receiving the deposit
Payment:TT
Trading terms:FOB,CIF,CFR
Product standard:GBT,JIS ,EN,ASTM
We can supply the Form E, Form A,CO and so on

Chemical Properties -
5005 Aluminium Coil Strip

Alloy Designation Si Fe Cu Mn Mg Cr Ni Zn Ti Ga V Remarks Others Aluminium
min
Numerical Chemical Sympols Each Total
EN AW
-5005
EN AW-
AI Mg1
(B)
0.3 0.7 0.2 0.20 0.50-1.1 0.10 - 0.25 - - - - 0.05 0.15 Remainder

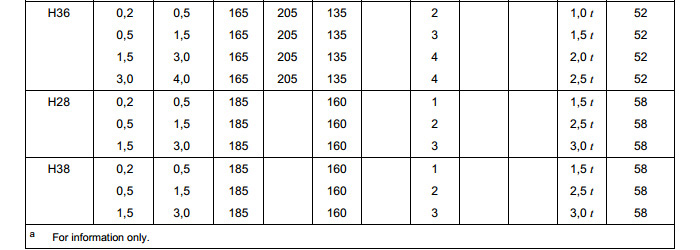

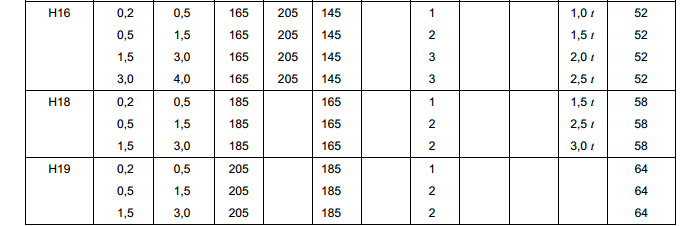

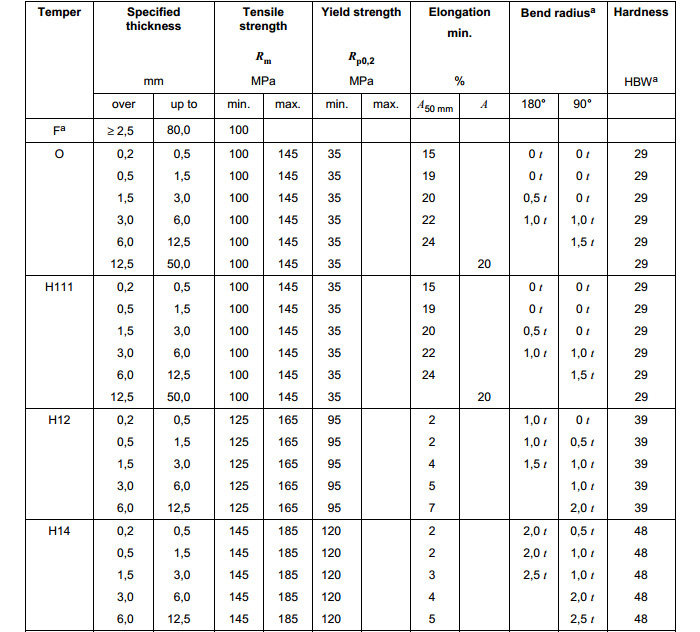

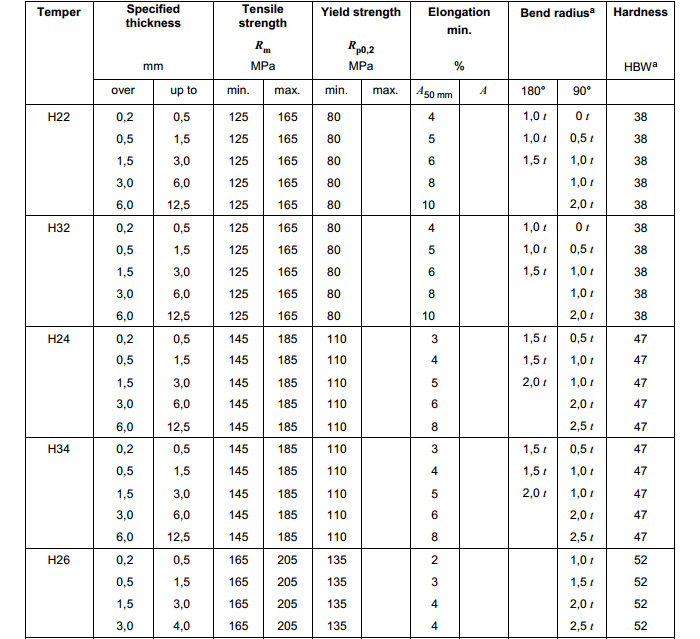

Mechanical Properties - 5005 Aluminium Coil Strip





5005 Aluminium Coil Product Tolerance Requirement
Total weight: +/-10%
Thickness:+/-1%
Width:+2/-0mm

5005 Aluminium Coil Strip Feature
1.medium tenacity
2.Good corrosion resistance
3.lower density
4.high tensile strength
5.high elongation

5005 Aluminium Coil Strip Purpose
1. Widely used in making conductor,cookware,dash board,flooring,shell,building material ,construction materials,voiture materials;
2. Kitchenware, food and chemical products processing and storage devices;
3. Aircraft fuel tanks, oil pipe, rivets, wire;
4. Cans cover, car body panels, steering plates, stiffeners, brackets and other components;
5. Manufacturing trucks, tower building, ship, train, furniture, machinery parts,precision machining with the tubes, rods, shaped, sheet metal.
