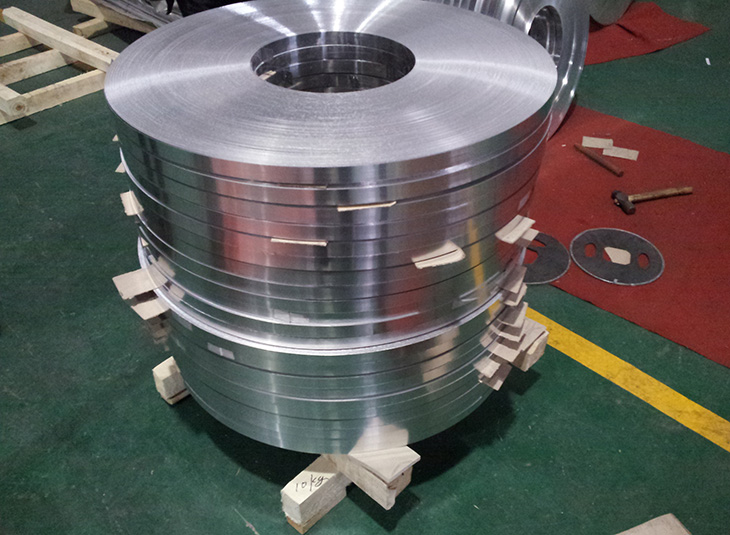

EN AW-3005 Aluminium Coil Strip
3005 Aluminum Strip / 3005 Aluminium Strip 10mm in China.
Alloy 3005 is a non-heat treatable wrought alloy used in many applications. It may be work hardened or used in the annealed state for drawn parts, bending, and many forming applications.
3005 aluminium coil strip be widely used to produce color coated aluminum coil strip. Such as 3005H18; 3005H16; 3005H14; 3005H24，3005-O; Also named Pre-Coat Aluminum Coil strip. It’s will use spray cleaning, double baking and double coating, more times baking and more times coating arts and crafts process usually. The color coated aluminum can be produce for color aluminum, The color draws the aluminum plank, The roller coating aluminum, The roller coating aluminum plank, other color coating metal plank, Aluminum composite panel , Aluminum Panel, Aluminum honeycomb panel.
Chemical Properties - 3005 Aluminium Coil Strip
|
Alloy Designation |
Si |
Fe |
Cu |
Mn |
Mg |
Cr |
Ni |
Zn |
Ti |
Ga |
V |
Remarks |
Others |
Aluminium
min |
|
Numerical |
Chemical Sympols |
Each |
Total |
EN AW
-3005 |
EN AW-
AI Mn1Mg
0.5 |
0.6 |
0.7 |
0.3 |
1.0-1.5 |
0.2-0.6 |
0.10 |
- |
0.25 |
0.10 |
- |
- |
- |
0.05 |
0.15 |
Remainder |
Detailed Specifications - 3005 Aluminium Coil Strip
1. Alloy: 3005
2. Thickness: 0.21-8.0mm
3. Width: 16-1600mm
4. Temper: H16, H12, H24 etc
5. Minimum order quantity: 2ton
6. Production standard:
Chemical Composite: GB/T 3190-2008, JIS, EN, ASTM
Mechanical Property: GB/T 3880-2006, JIS, EN, ASTM

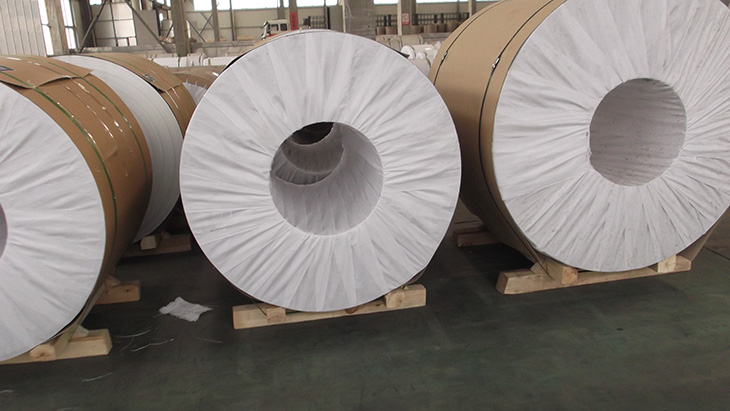

7. Package: seaworthy package.
8. Surface quality: Smooth, clean, be free of oil, stain, scratch, wave and corrosion, ready for paint, oxidation and lamination.
9. Delivery time: within 20days .
10. Usage: Mobile e battery shell; Air-conditioning; Fridge; Automotive chassis; building material; color coating; Kitchen utensils; storage device on food and chemical products; slot, tank, pressure vessel for transportation of liquid product, and pipeline; Heat sink; Makeup board; Photocopying machine drum; boat material etc.
Certification:ROHS, SGS, FDA, ISO9001:2008, ISO14001:2004, GB/T 28001-2001, FORM A/E or CO, Mill Test Report.
11.Payment term: T/T, LC at sight.
|
Thickness(mm) |
Width(mm) |
Length(mm) |
ID(mm) |
OD(mm) |
|
0.2-8 |
≤2300 |
≤12000 |
76 |
≤2800 |
|
150 |
|
300 |
|
505 |
|
508 |
Can be customized according to the following standards:
ASTM B209
EN BS 485/ EN BS 573
GB/T 3880-2006/ GB/T 3190-2008

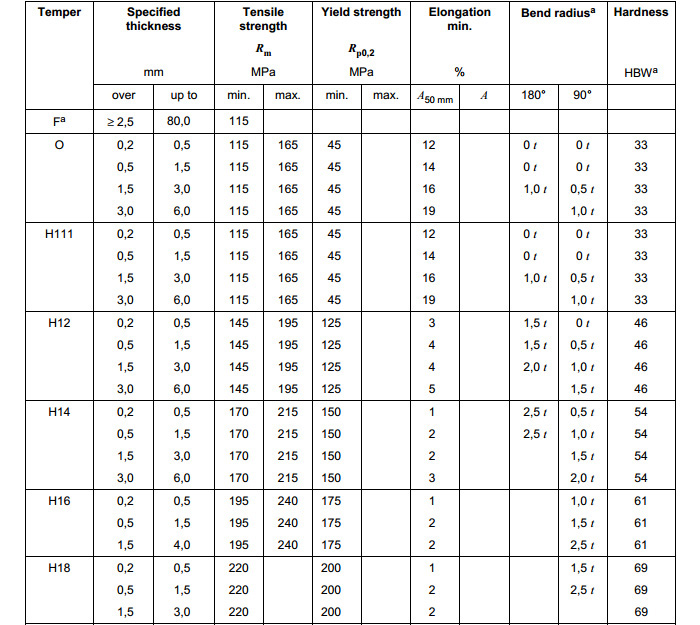

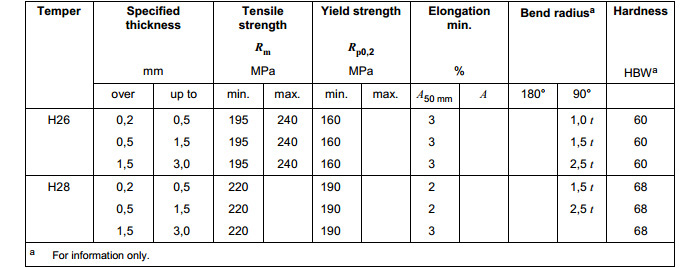

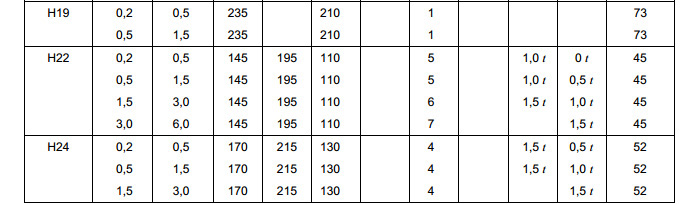

Mechanical Properties - 3005 Aluminium Coil Strip
Features for Aluminium coil strip: - 3005 Aluminium Coil Strip
1) Smooth and flat
2) Weather resistance
3) Good quality surface finish
4) Anti-corrosion
5) Anti-ultraviolet
Application of Aluminium Coil Strip: - 3005 Aluminium Coil Strip
Our aluminum coil strip widely used in various applications such as refrigerator, commecial freezer, cable wrap, capacitors, PP cap, anti-theft strip, aluminum/plastic composite pipes, PS substrated etc.
1) Radiator
2) Condenser
3) Insulation Material
4) Construction
5) Aircraft
6) Beverage cans
