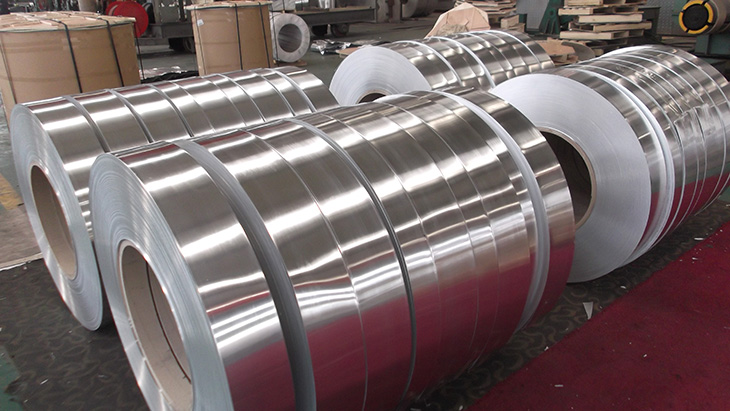

1100 Aluminium Coil Strip

Current Position :Home/Alloy Strip Coil/1100 Aluminium Coil Strip

1100 Aluminium Coil Strip Description
1100 Aluminum Coil Stock Colors / 1100 Painted Aluminum Coil in China.

  1100 aluminum is the most commercially pure alloy of all the aluminum grades. 1100 aluminum strip and 1100 aluminum sheet are both available for various applications including chemical storage and processing equipemtn. Benefits of 1100 aluminum strip & sheet include a 99% or greater content of aluminum compared to other grades of aluminum. 1100 is a low strength aluminum alloy with excellent corrosion resistance. This grade is best used for welding, brazing and soldering but has poor machinability.  1100 aluminum has great finishing capabilities so it is a great choice for decorative purposes.
Alloy:1100
Temper:HO,H12,H14,H16,H18,H22,H24,H26
Thickness:0.2mm-6.0mm
Width:80mm-2300mm
Standard production:ASTM-B-209M,BS EN 485-2,BS EN 573-3,GB/T3880-2008
MOQ:5 tons per size
Mother coil:DC or CC
ID:76mm,152mm,408mm,508mm
Surface:Mill finishing,mirror finishing,checkered

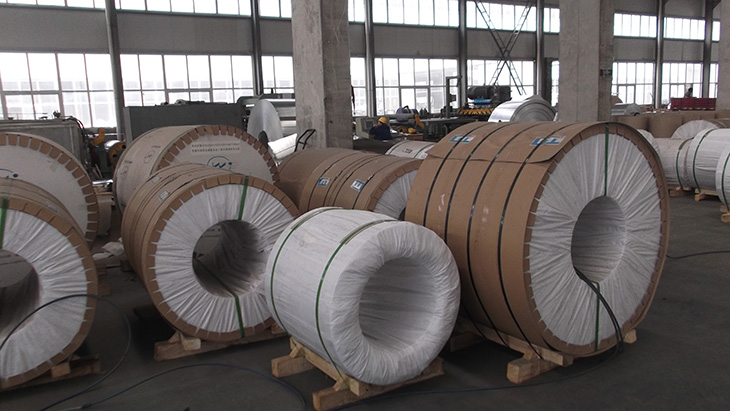

Package:Export standard package with wooden pallet
Package way:Eye to sky or eye to wall
Delivery time:within 30days
Origin:Zhengzhou,China
Certificate: Mill Test Certificate,Certificate of origin:Form A,Form E,CO

Chemical Properties -
1100 Aluminium Coil Strip

Alloy Designation Si Fe Cu Mn Mg Cr Ni Zn Ti Ga V Remarks Others Aluminium
min
Numerical Chemical Sympols Each Total
EN AW
-1100
EN AW-
AI 99.0Cu
0.95 Si+Fe 0.05-0.20 0.05 - - - 0.10 - - - e 0.05 0.15 99.00

Mechanical Properties - 1100 Aluminium Coil Strip
Thickness(mm) Tensile strength(Mpa) Yield strength(Mpa) Elongtion(%)
0.2-0.3 110-145 95 1
0.301-0.5 110-145 95 2
0.51-1.5 110-145 95 3
1.51-4.0 110-145 95 5


1100 Aluminium Coil Strip application:
1.Lighting, printing, packing, decorative, electronics surface, hot rolled thick plate, PS base plate,
aluminium plastic base plate, aluminium curtain wall base plate, aluminium composite panel base.
plate, aluminium spacer, aluminium embossed sheet.
2.Interior:wall cladding,ceilings,bothrooms,kitchens and balconies,shutters,doors,curtain wall.
3.Exterior:wall cladding,facades,roofing,camopies,tunnels,column cover,renovations.
4.Advertisement:display platforms,signboards,fascia,shop fronts.
