Aluminum Slit Coil

Current Position :Home/Aluminium Strip/Aluminum Slit Coil

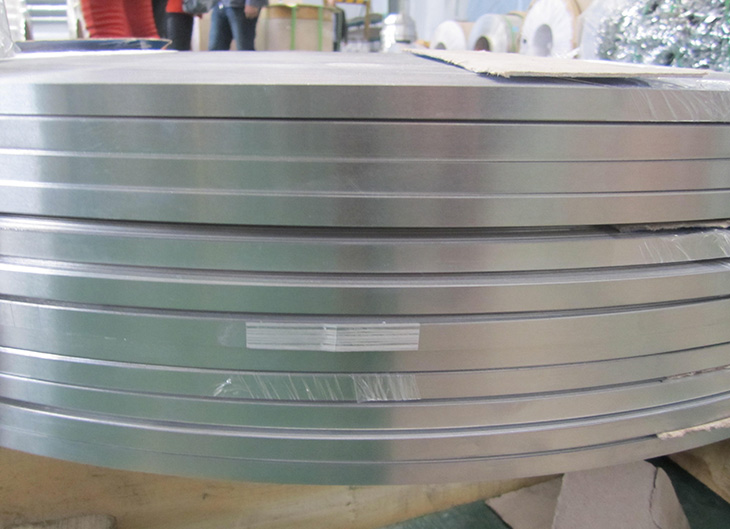

Aluminium Slit Coil
Aluminum Slit Coil / Aluminium Slit Coil / Aluminium Slit Strip in China

Technical Specifications
Thickness: 0.3-3mm
Width: 200-800mm
Temper: O, H24, H18, H111, H14
Material (alloy): 1100, 1050, 1070, 3003, 3004, 3105, 3005, 5005, 5052, 5754


Aluminium Slit Coil Processing - ALUMINIUM SLIT COIL

Sizes range from:

Gauge: 0.25mm > 3.0mm
Widths available: 10mm > 1250mm
Tolerance: ± 0.127mm
STAINLESS STEEL SLIT COIL

Gauge: 0.4mm > 2.0mm
Widths available: 10mm > 1250mm
Tolerance: ± 0.127mm
Please enquire for specific guage and width configurations available

Gauge: 0.25mm > 2.0mm
Widths available: 50mm > 1000mm
Length Min/Max: 150mm > 3000mm
Tolerance Width: ± 0.127mm
Tolerance Length: ± 0.5mm
STAINLESS STEEL PRECISION BLANKS

Gauge: 0.4mm > 2.0mm
Widths available: 50mm > 1000mm
Length Min/Max: 150mm > 3000mm
Tolerance Width: ± 0.127mm
Tolerance Length: ± 0.5mm

Technical requirements
Parameters of processed cold-rolled aluminium slit coils (source material) wound on a spool:

strip thickness, mm 0.2-5.0
strip width, mm 1,000-2,800
inside diameter of a coil,
wound on a spool, mm
600
coil outer diameter, mm 1,200-2,600
coil telescoping, mm ± 10
scimitar-shape of a strip wound in a coil,
up to 2 mm per 1 running meter of a strip

coil weight, kg, no more than min 2,500
max 25,000

Slit Coil Material properties:

tensile strength, n/mm2 80-400
tensile yield strength, n/mm2 40-300
relative elongation at rupture, % 4-40

Finished product parameters – band in a slit coil:

strip thickness, mm 0.2-5.0
strip width with stepless regulation, mm 20-2,750
width of edge to be cut, mm 10-50
coil inside diameter, mm 508
coil outer diameter, mm 1,200-2,600
allowed number of cuts, мах 40
coil weight, kg, up to 25,000



Aluminium Slit Coil Applications:
    Aluminum sheet are widely used for aluminum and plastic composite board,aluminum and plastic pipe,and bottle/tank cap,as well as curtain wall board/aluminum curtain board,ceiling board/special-shaped ceiling board,aluminium sheets for cable channel,conmestic packging and electrical manufacture,etc.
We have two large-scale rolling mills with width 2500mm and related machines. Our produce lines and testing machines imported from Germany, we adopt international advanced technique produce aluminium products, which can ensure our quality.
