1050 Aluminium Coil Strip

Current Position :Home/Alloy Strip Coil/1050 Aluminium Coil Strip

1050 Aluminium Coil Strip Description
1050 Coil Stock Aluminum / 1050 Coil Aluminum / 1050 Coil Aluminium in China.


Alloy:1050,1050A
Temper:HO,H12,H14,H16,H18,H22,H24,H26
Thickness:0.2mm-6.0mm
Width:80mm-2300mm
Standard production:ASTM-B-209M,BS EN 485-2,BS EN 573-3,GB/T3880-2008
MOQ:5 tons per size
Mother coil:DC or CC
ID:76mm,152mm,408mm,508mm
Surface:Mill finishing,mirror finishing,checkered

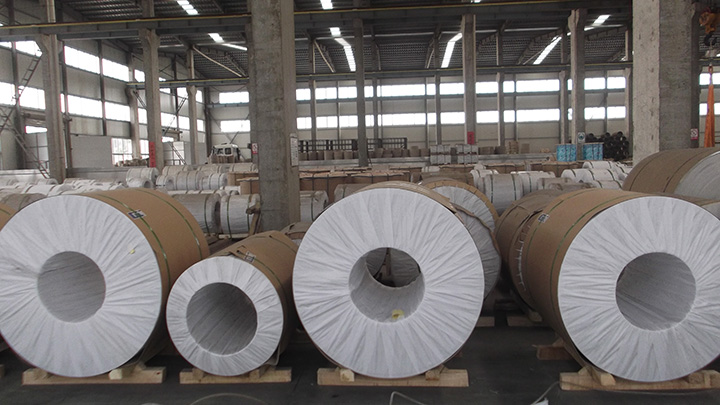

Package:Export standard package with wooden pallet
Package way:Eye to sky or eye to wall
Delivery time:within 30days
Origin:Zhengzhou,China
Certificate: Mill Test Certificate,Certificate of origin:Form A,Form E,CO

Chemical Properties -
EN AW-1050A Aluminium Coil Strip

Alloy Designation Si Fe Cu Mn Mg Cr Ni Zn Ti Ga V Remarks Others Aluminium
min
Numerical Chemical Sympols Each Total
EN AW
-1050A
EN AW-
AI 99.5
0.24 0.40 0.05 0.05 0.05 - - 0.07 0.05 - - - 0.03 - 99.50

TOLERANCE - EN AW-1050A Aluminium Coil Strip
TOLERANCE
Major Brand A1050(O)
Thickness 0.2-0.4 0.4-0.8 0.9-1.1 1.2-1.6 1.8-2.0
tolerance ±0.01 ±0.015 ±0.02 ±0.025 ±0.03
Width <100 100-200 201-500 501-1250 >1250
tolerance ±0.1 ±0.2 ±0.2 ±1 ±2
BURR AND COLLAPSE
The width of aluminum belt burr’s height collapsed side’s height
<0.2 0.01 ≥0.05-0.1
0.2-1.0 0.015
1.1-1.5 0.02
>1.6 0.03
MECHANICAL PROPERTY
U.T.S: 60-95N/mm2 Elongation: >25%
Density in 20°C :2.703kg/dm3 Max.resistance in 20°C:≤0.02825Ωmm2/m

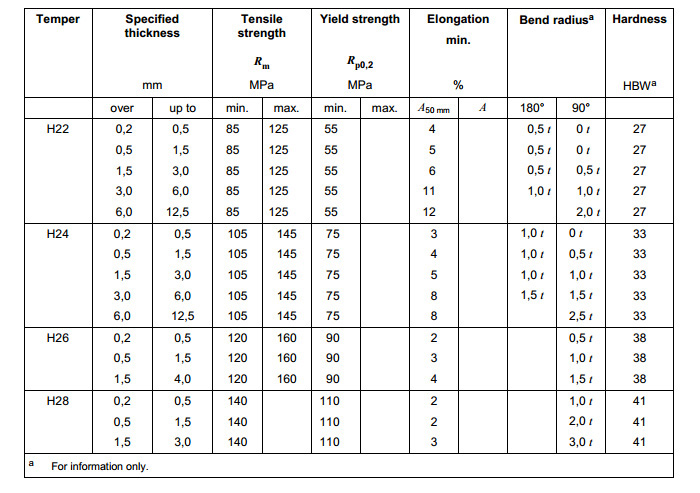

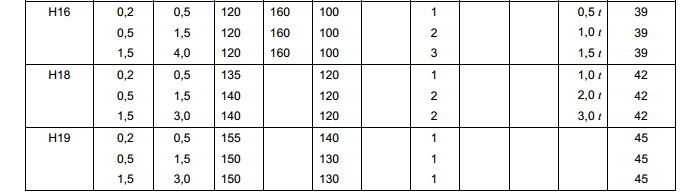

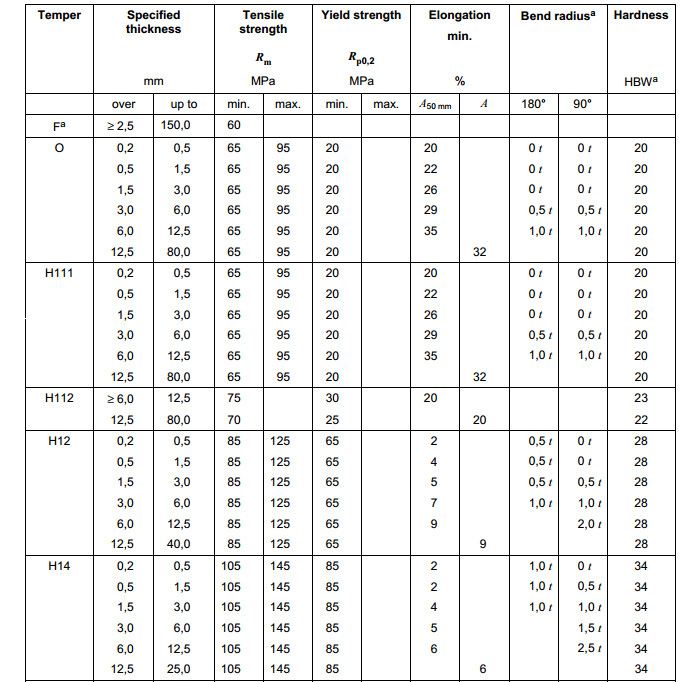

Mechanical Properties  (1050 Aluminium Coil Strip)


1050 Aluminium Coil Strip feature
1 Enviromental
2. light weight
3 waterproof
4. anti-rust
5. weather resistance
6.easy cleaning
7.easy matching with other decoration material

1050 Aluminium Coil Strip application:
1.Lighting, printing, packing, decorative, electronics surface, hot rolled thick plate, PS base plate,
aluminium plastic base plate, aluminium curtain wall base plate, aluminium composite panel base plate, aluminium spacer, aluminium embossed sheet.
2.Interior:wall cladding,ceilings,bothrooms,kitchens and balconies,shutters,doors,curtain wall.
3.Exterior:wall cladding,facades,roofing,camopies,tunnels,column cover,renovations.
4.Advertisement:display platforms,signboards,fascia,shop fronts.
