6061 Aluminium Coil Strip Description
6061 Aluminum Coil Stock / Aluminium Coils / Aluminium Coil in China
6061 Aluminum Coil Stock / Aluminium Coils / Aluminium Coil in China
Alloy:6061
Temper:F,T6,T651,T9,T4,H111,H112
Mother coil:DC
Thickness:0.8-6.0mm
Width:800-2300mm
MOQ:5 ton per size
Surface:clean and smooth,no bright speck,corrosion,oil,slotted,etc.
Weigth:about 2mt per pallet

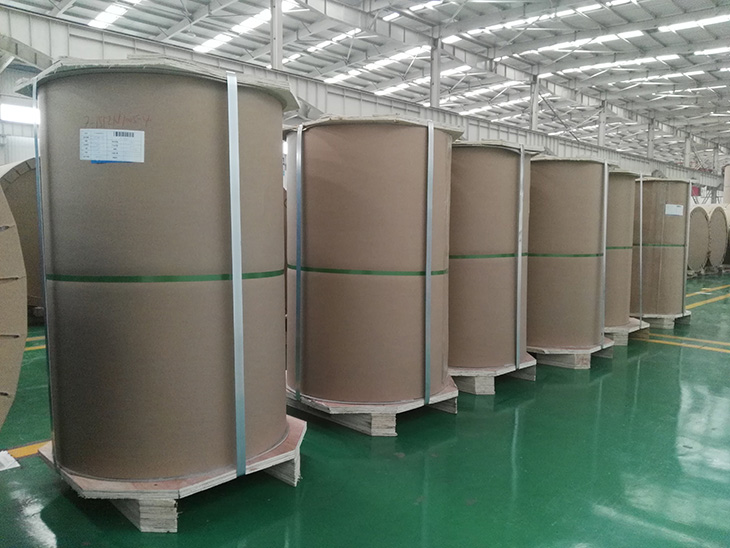

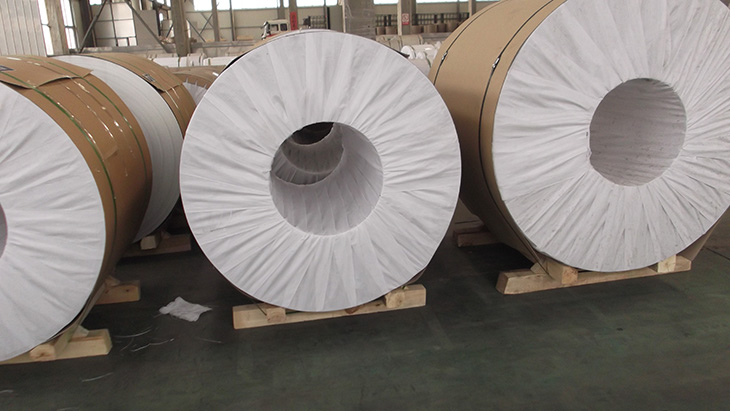

Package:export standard package,wooden pallet with fumigation
Delivery time:about 30days after receiving the deposit
Payment:TT
Trading terms:FOB,CIF,CFR
Product standard:GBT,JIS ,EN,ASTM
We can supply the Form E, Form A,CO and so on
Chemical Properties - 6061 Aluminium Coil Strip
Chemical Properties - 6061 Aluminium Coil Strip
| Alloy Designation | Si | Fe | Cu | Mn | Mg | Cr | Ni | Zn | Ti | Ga | V | Remarks | Others |
Aluminium min |
||
| Numerical | Chemical Sympols | Each | Total | |||||||||||||
|
EN AW -6061 |
EN AW- AI Mg1SiCu |
0.4-0.8 | 0.7 | 0.15-0.4 | 0.15 | 0.8-1.2 |
0.04- 0.35 |
- | 0.25 | 0.15 | - | - | - | 0.05 | 0.15 | Remainder |
Key Properties - 6061 Aluminium Coil Strip
Typical properties of Aluminium Alloy 6061 include:
• Medium to high strength
• Good toughness
• Good surface finish
• Excellent corrosion resistance to atmospheric conditions
• Good corrosion resistance to sea water
• Can be anodized
• Good weldability and brazability
• Good workability
• Widely available

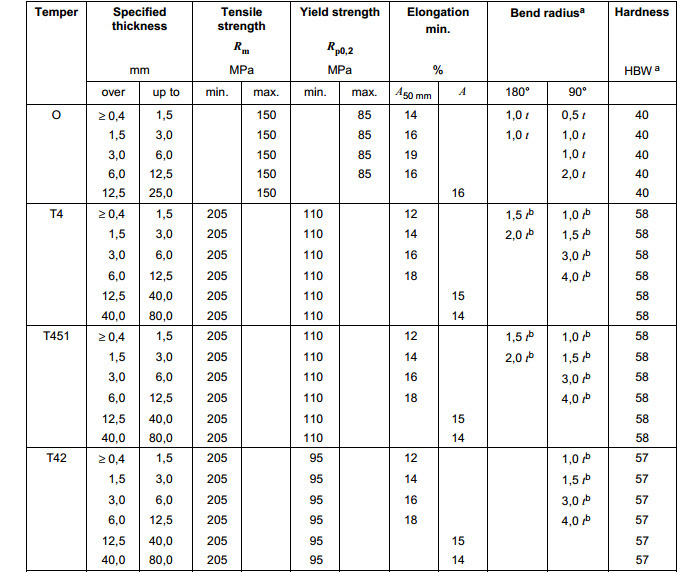

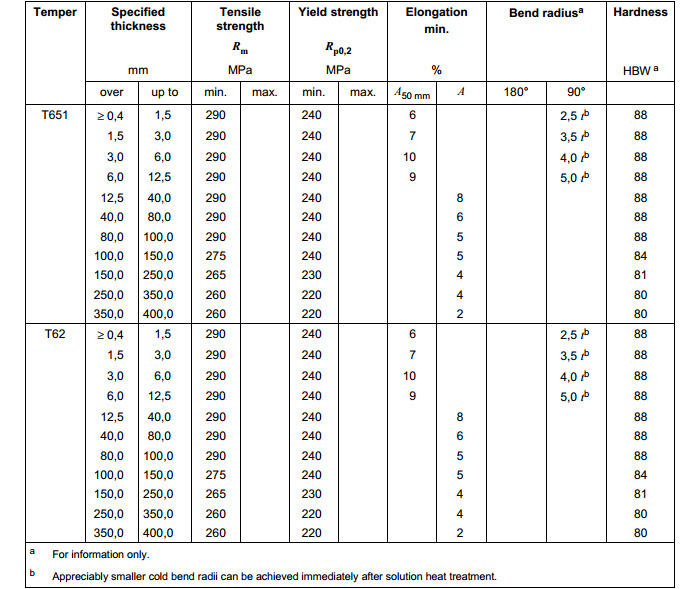

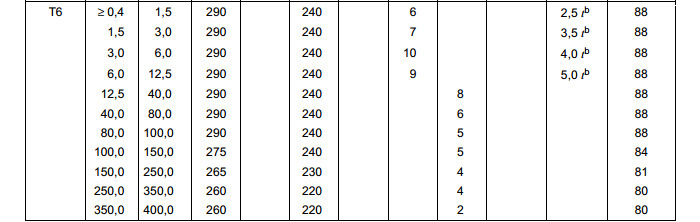

Mechanical Properties - 6061 Aluminium Coil Strip
Mechanical Properties - 6061 Aluminium Coil Strip
Physical Properties - 6061 Aluminium Coil Strip
Density: 2.7 g/cm3
Melting Point: Approx 580°C
Modulus of Elasticity: 70-80 GPa
Poissons Ratio: 0.33
Thermal Properties - 6061 Aluminium Coil Strip
Co-Efficient of Thermal Expansion (20-100°C): 23.5x10-6 m/m.°C
Thermal Conductivity: 173 W/m.K
Electrical Properties - 6061 Aluminium Coil Strip
Electrical Resistivity: 3.7 – 4.0 x10-6 Ω.cm
| Typical Heat Treatment/Temper States | ||||||||||||||
|
6061 Aluminium Coil Strip Feature:
1.Moderate intensity
2.Rust-resistance
3.Good weld ability
4.Good oxidation effect
5.Easy polishing processing
6.Good plasticity
7.Easy to cold work ability
8.Easy to paint film
6061 Aluminium Coil Strip Purpose
1.To make machine part,precision machining,aircraft parts,camera parts,coupler,hydraulic piston,
brake piston,valve parts ,building pipeline,etc.
2. To make all kinds of industrial structure that required a certain strength and high corrosion resistance .
3.To make the truck,tower building,vessel,trolley,railway vehicle,furniture,etc.
Applications
Typical applications for aluminium alloy 6061 include:
• Aircraft and aerospace components
• Marine fittings
• Transport
• Bicycle frames
• Camera lenses
• Driveshafts
• Electrical fittings and connectors
• Brake components
• Valves
• Couplings
