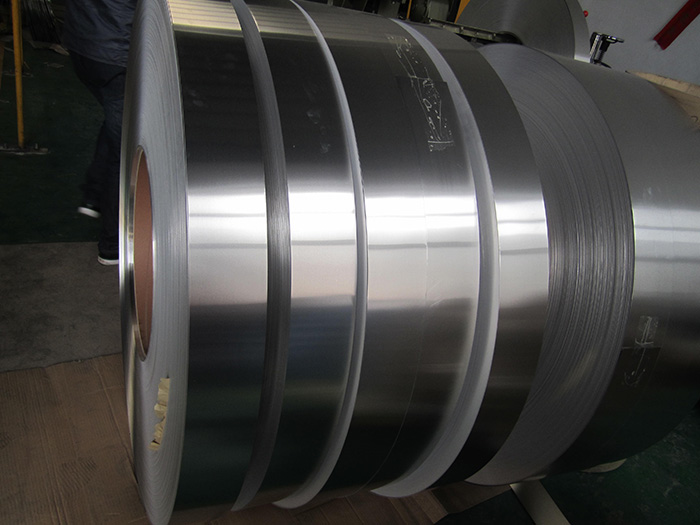

1060 Aluminium Coil Strip
1060 Aluminium Coil Manufacturers / 1060 Aluminium Coil Suppliers in China.
1060 Aluminium Coil Manufacturers / 1060 Aluminium Coil Suppliers in China.
Alloy:1060
Temper:HO,H12,H14,H16,H18,H22,H24,H26
Thickness:0.2mm-6.0mm
Width:80mm-2300mm
Standard production:ASTM-B-209M,BS EN 485-2,BS EN 573-3,GB/T3880-2008
MOQ:5 tons per size
Mother coil:DC or CC
ID:76mm,152mm,408mm,508mm
Surface:Mill finishing,mirror finishing,checkered

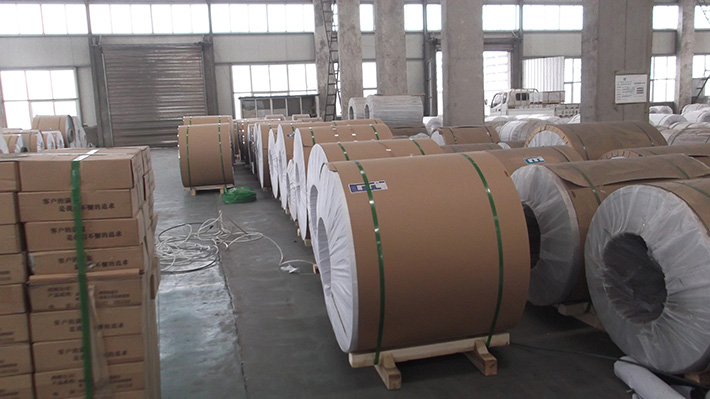

Package:Export standard package with wooden pallet
Package way:Eye to sky or eye to wall
Delivery time:within 30days
Origin:Zhengzhou,China
Certificate: Mill Test Certificate,Certificate of origin:Form A,Form E,CO
Payment: T/T
Chemical Properties - EN AW-1060 Aluminium Coil Strip
Chemical Properties - EN AW-1060 Aluminium Coil Strip
| Alloy Designation | Si | Fe | Cu | Mn | Mg | Cr | Ni | Zn | Ti | Ga | V | Remarks | Others |
Aluminium min |
||
| Numerical | Chemical Sympols | Each | Total | |||||||||||||
|
EN AW -1060 |
EN AW- AI 99.6 |
0.24 | 0.35 | 0.05 | 0.03 | 0.03 | - | - | 0.05 | 0.03 | - | 0.05 | - | 0.03 | - | 99.60 |
Mechanical Properties - EN AW-1060 Aluminium Coil Strip
| Alloy |
Supplier Temper |
Testing Temper |
Thickness (mm) |
Tensile Strength Rm/Mpa |
Extension Strength Rp0.2/MPa |
Elongation after Break | Bending Radius | ||
| A50mm | A5.55e | ||||||||
| Not less than | |||||||||
| O | O | > 0.2 - 0.30 | 60 - 100 | 15 | 15 | - | - | ||
| > 0.3 - 0.50 | 18 | - | - | ||||||
| > 0.5 - 1.50 | 23 | - | - | ||||||
| > 1.5 - 6.0 | 25 | - | - | ||||||
| > 6.0 - 80.0 | 25 | 22 | - | ||||||
| H12 | H12 | > 0.5 - 1.50 | 80 - 120 | 60 | 6 | - | - | ||
| H22 | H22 | > 1.5 - 6.0 | 12 | - | - | ||||
|
H14 H24 |
H14 H24 |
> 0.2 - 0.3 | 95 - 135 | 70 | 1 | - | - | ||
| > 0.3 - 0.5 | 2 | - | - | ||||||
| > 0.5 - 0.8 | 2 | - | - | ||||||
| > 0.8 - 1.5 | 4 | - | - | ||||||
| > 1.5 - 3.0 | 6 | - | - | ||||||
| > 3.0 - 6.0 | 10 | - | - | ||||||
|
H16 H26 |
H16 H26 |
> 0.2 - 0.3 | 110 - 155 | 75 | 1 | - | - | ||
| > 0.3 - 0.5 | 2 | - | - | ||||||
| > 0.5 - 0.8 | 2 | - | - | ||||||
| > 0.8 - 1.5 | 3 | - | - | ||||||
| > 1.5 - 4.0 | 5 | - | - | ||||||
| H18 | H18 | > 0.2 - 0.3 | 125 | 85 | 1 | - | - | ||
| > 0.3 - 0.5 | 2 | - | - | ||||||
| > 0.5 - 1.5 | 3 | - | - | ||||||
| > 1.5 - 3.0 | 4 | - | - | ||||||
| H112 | H112 | > 4.5 - 6.0 | 75 | - | 10 | - | - | ||
| > 6.0 - 12.5 | 75 | 10 | - | - | |||||
| > 12.5 - 40.0 | 70 | - | 18 | - | |||||
| > 40.0 - 80.0 | 60 | - | 22 | - | |||||
| F | - | > 2.5 - 150 | - | - | |||||
Production Tolerance - - EN AW-1060 Aluminium Coil Strip
Thickness: (+/-0.02mm)
Width :( +2/-0mm)
Quatity:+/-10%
| TOLERANCE | |||||
| Major Brand | A1060(O) | ||||
| Thickness | 0.2-0.4 | 0.4-0.8 | 0.9-1.1 | 1.2-1.6 | 1.8-2.0 |
| tolerance | ±0.01 | ±0.015 | ±0.02 | ±0.025 | ±0.03 |
| Width | <100 | 100-200 | 201-500 | 501-1250 | >1250 |
| tolerance | ±0.1 | ±0.2 | ±0.2 | ±1 | ±2 |
| BURR AND COLLAPSE | |||||
| The width of aluminum belt | burr’s height | collapsed side’s height | |||
| <0.2 | 0.01 | ≥0.05-0.1 | |||
| 0.2-1.0 | 0.015 | ||||
| 1.1-1.5 | 0.02 | ||||
| >1.6 | 0.03 | ||||
| MECHANICAL PROPERTY | |||||
| U.T.S: 60-95N/mm2 | Elongation: >25% | ||||
| Density in 20°C :2.703kg/dm3 | Max.resistance in 20°C:≤0.02825Ωmm2/m | ||||
Application - EN AW-1060 Aluminium Coil Strip
1.Lighting, printing, packing, decorative, electronics surface, hot rolled thick plate, PS base plate,
aluminium plastic base plate, aluminium curtain wall base plate, aluminium composite panel base
plate, aluminium spacer, aluminium embossed sheet
2.Interior:wall cladding,ceilings,bothrooms,kitchens and balconies,shutters,doors,curtain wall
3.Exterior:wall cladding,facades,roofing,camopies,tunnels,column cover,renovations
4.Advertisement:display platforms,signboards,fascia,shop fronts
Surface Quality - EN AW-1060 Aluminium Coil Strip
Be free from Oil Stain, Dent, Inclusion, Scratches, Stain, Oxide Discoloration, Breaks,Corrosion, Roll Marks, Dirt Streaks and other defect which will interfere with use.
