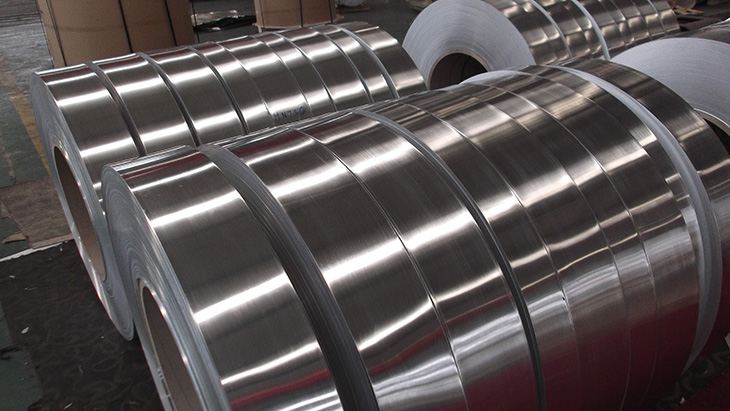

Product Description - 1350 Aluminium Coil Strip
1350 Coil Aluminium / 1350 Aluminum Coil Manufacturers in China.
1350 Coil Aluminium / 1350 Aluminum Coil Manufacturers in China.
Detailed Description
1.Type: Strip, Aluminium foil transformer, Aluminium foil strip
2.Alloy: 1350
3.Temper: O
4.Edge: round, free from bur, no pits & dents, No scratches, Cleaned & Degreased
5.Thickness: 0.2 ~ 4.0mm
6.Width: 30~1300mm
7.Inner Diameter: 150, 300, 500mm
8.Min order: 2 tons
9.Payment Term: TT or Irrevocable LC at sight
Application
For electronic transformers, aluminium transformer winding, etc.
Chemical Properties - 1350 Aluminium Coil Strip
Mechanical Properties - 1350 Aluminium Coil Strip
Chemical Properties - 1350 Aluminium Coil Strip
| Alloy Designation | Si | Fe | Cu | Mn | Mg | Cr | Ni | Zn | Ti | Ga | V | Remarks | Others |
Aluminium min |
||
| Numerical | Chemical Sympols | Each | Total | |||||||||||||
|
EN AW -1350 |
EN AW- AI 99.5 |
0.10 | 0.40 | 0.05 | 0.01 | - | 0.01 | - | 0.05 | - | 0.03 | - |
0.05B; 0.02V+Ti |
0.03 | 0.10 | 99.50 |
Mechanical Properties - 1350 Aluminium Coil Strip
| Internal Alloy Design |
Former B.S. Specs |
0.2% Proof Stress MPa |
Tensile Strength MPa |
% Elongation |
Shear Strength MPa |
Fatigue Strength 50 mil. cycles MPa |
Hardness | ||||
|
On √5.65 SO |
On 50 mm |
Brinell | Vickers | Rockwell B | |||||||
| 1350 |
0 H12 H14 H16 |
P1E |
95 110 125 |
85 - - - |
- - - - |
- 60 70 75 |
55 - - - |
- - - - |
- - - - |
- - - - |
- - - - |
| Alloy-Temper |
Tensile Strength (ksi) |
Yield Strength (ksi) |
Elongation (%) |
| 1350-O | 12 | 4 | 34 |
| 1350-H14 | 16 | 14 | 3 |
| 1350-H19 | 27 | 24 | 2 |
Appearance standard : - 1350 Aluminium Coil Strip
Soft surface, no grease, smooth and without feeling scratch. Tolerances of side burr, thickness and width should less than that in the standard.

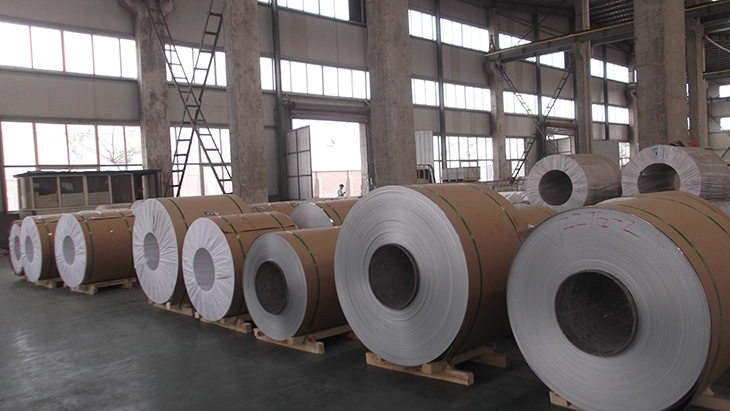

Packing : - 1350 Aluminium Coil Strip
Standard Export Wooden Pallet or Case. Also we can meet special requirements of customers. Deliver in coil, hard paper core inside, with paper interleaved. Eye to wall and Eye to Sky, both ok.
Applications : - 1350 Aluminium Coil Strip
Excellent formability, weldability and corrosion resistance. Mainly used for electric material in high and low pressure winding for dry type transformer and oil transformer.
