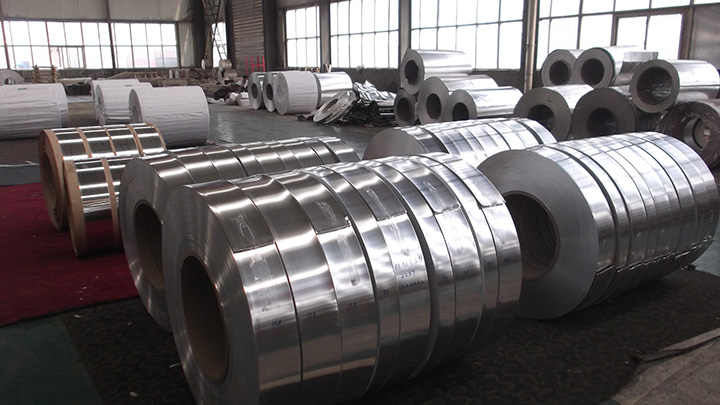

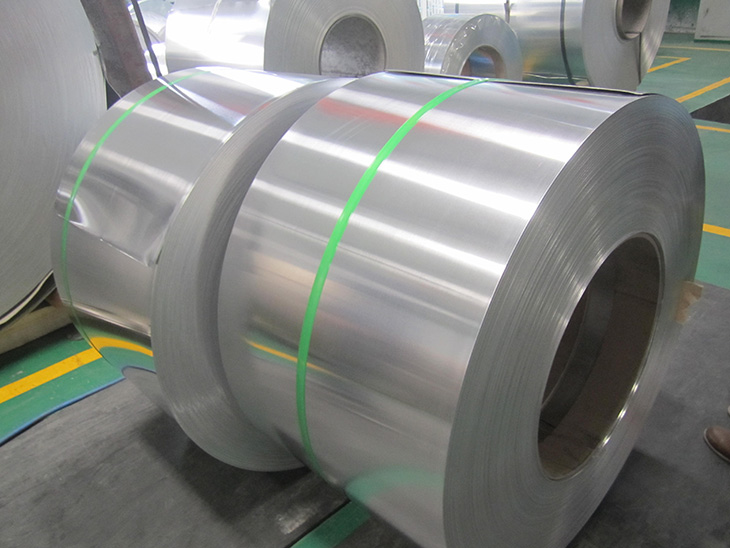

5083 Aluminium Coil Strip Description
5083 Aluminium Stripping / Anodised Aluminium Strip in China
5083 Aluminium Stripping / Anodised Aluminium Strip in China
Alloy:5083
Temper:H116,H321,H111,H112,HO,H32,H34,H38,H19
Thickness:0.8mm-6.0mm
Width:800mm-1700mm
MOQ:5 tons per size
Product standard:GBT ,JIS4000, EN485, ASTM928,ASTMB209
Surface:clean and smooth,no bright speck,corrosion,oil,slotted,etc.
Weigth:about 2mt per pallet

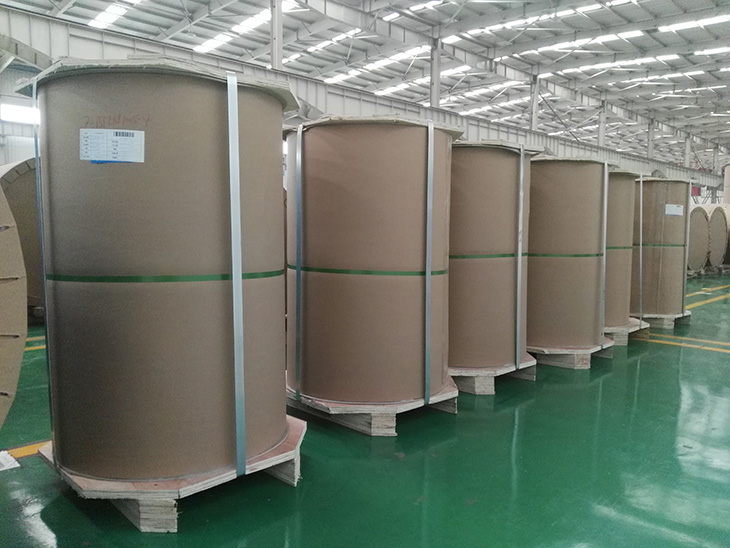

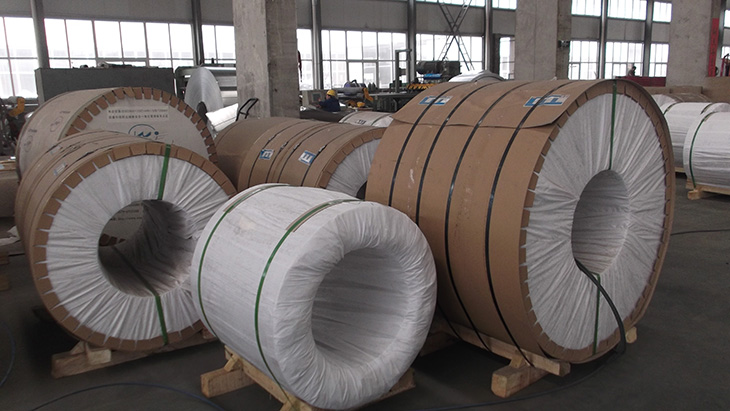

Package:export standard package,wooden pallet with fumigation
Package way:Eye to sky or eye to wall
Delivery time:about 30days after receiving the deposit
Payment:TT
Trading terms:FOB,CIF,CFR
Product standard:GBT,JIS ,EN,ASTM
We can supply the Form E, Form A,CO and so on
Chemical Properties - 5083 Aluminium Coil Strip
Mechanical Properties - 5083 Aluminium Coil Strip
Chemical Properties - 5083 Aluminium Coil Strip
| Alloy Designation | Si | Fe | Cu | Mn | Mg | Cr | Ni | Zn | Ti | Ga | V | Remarks | Others |
Aluminium min |
||
| Numerical | Chemical Sympols | Each | Total | |||||||||||||
|
EN AW -5083 |
EN AW- AI Mg4.5 Mn0.7 |
0.4 | 0.40 | 0.10 | 0.4-1.0 | 4.0-4.9 |
0.05- 0.25 |
- | 0.25 | 0.15 | - | - | - | 0.05 | 0.15 | Remainder |

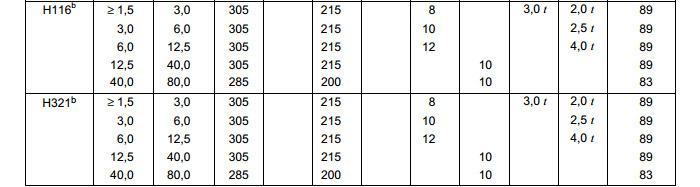

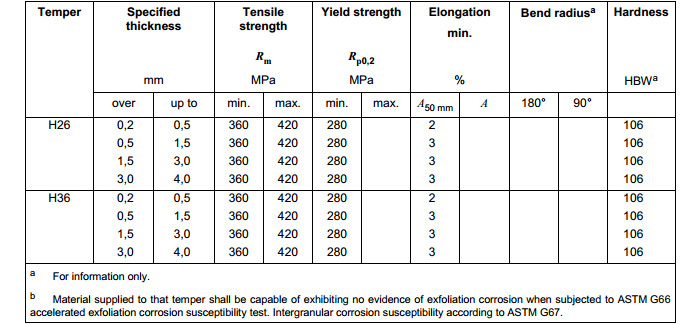

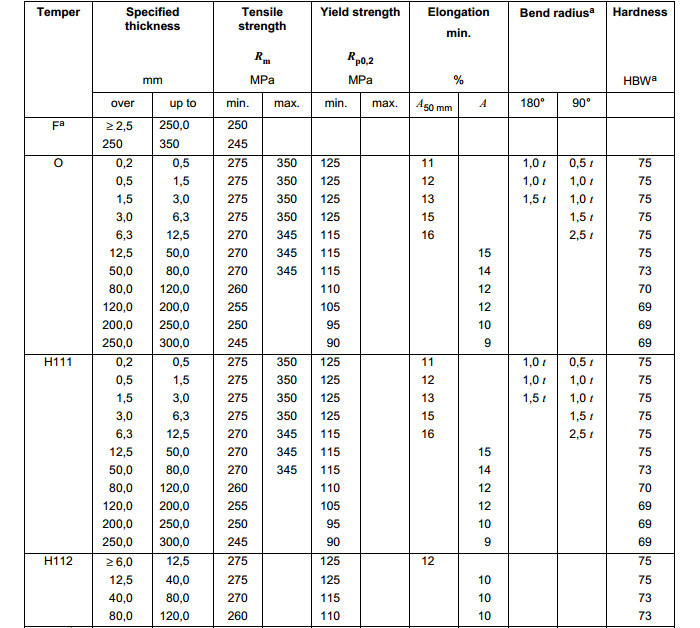

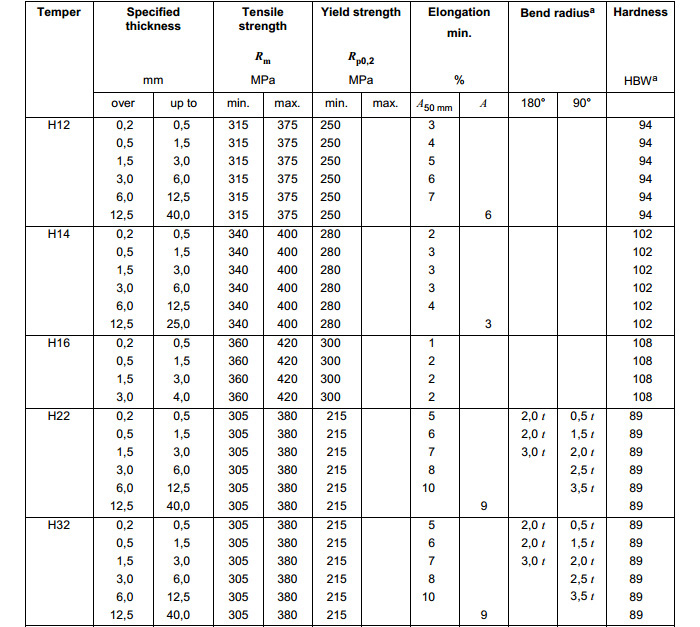

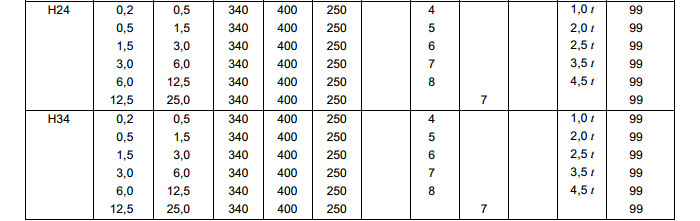

Mechanical Properties - 5083 Aluminium Coil Strip
5083 Aluminium Coil Strip Alloy Features:
a.In not heat treated alloy strength;
b.good corrosion resistance;
c.good machinability;
d.arc welding performance is good;
e.the anode surface is beautiful;
5083 Aluminium Coil Strip Application:
1.ships,vehicles,aircraft components,metro lifht rail,liquid tank car,refrigerated trucks,refrigerated container,cooling device,television toaer,drilling equipment,transportation equipment,missile component and armor,etc.
2.Aircraft fuel tanks, oil pipe, rivets, wire;Cans cover, car body panels, steering plates, stiffeners, brackets and other components; Manufacturing trucks, tower building, ship, train, furniture, machinery parts,precision machining with the tubes, rods, shaped, sheet metal.
