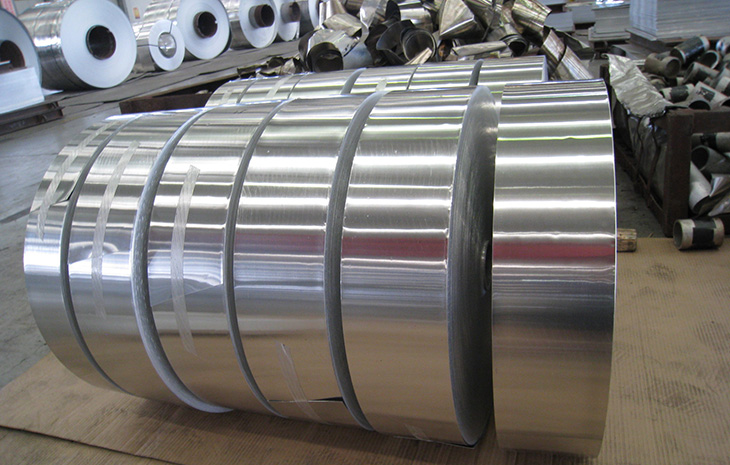

5052 Aluminium Coil Strip Description
5052 Aluminium Strip Price / 5052 Plat Strip Aluminium in China
5052 Aluminium Strip Price / 5052 Plat Strip Aluminium in China
| Product Name | 5052 Aluminum Coil Strip |
| Thickness(mm) | 0.5-150mm |
| Width(mm) | 25mm-2200mm |
| Packing | Export standard, covering with brown paper and plastic film then packed with wooden case/pallet, eye to wall or eye to sky |
Alloy:5052
Temper:H32,H34,H38,H111,H112,H114,HO
Mother coil:DC
Thickness:0.5-150mm
Width:100-2300mm
MOQ:5ton per size
Surface:clean and smooth,no bright speck,corrosion,oil,slotted,etc.
Weigth:about 2mt per pallet

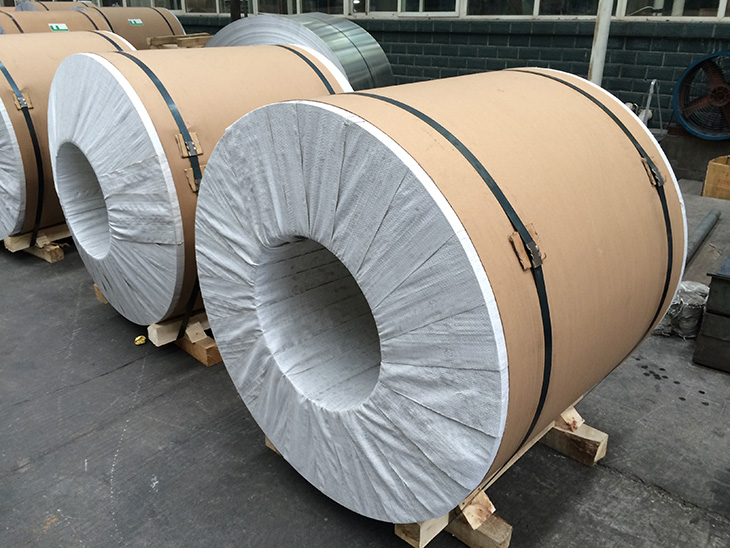

Package:export standard package,wooden pallet with fumigation
Package way:Eye to sky or Eye to wall
Delivery time:about 30days after receiving the deposit
Payment:TT
Trading terms:FOB,CIF,CFR
Product standard:GBT,JIS ,EN,ASTM
We can supply the Form E, Form A,CO and so on
Chemical Properties - 5052 Aluminium Coil Strip
Mechanical Properties - 5052 Aluminium Coil Strip
Chemical Properties - 5052 Aluminium Coil Strip
| Alloy Designation | Si | Fe | Cu | Mn | Mg | Cr | Ni | Zn | Ti | Ga | V | Remarks | Others |
Aluminium min |
||
| Numerical | Chemical Sympols | Each | Total | |||||||||||||
|
EN AW -5052 |
EN AW- AI Mg2.5 |
0.25 | 0.40 | 0.1 | 0.1 |
2.2 -2.8 |
0.15- 0.35 |
- | 0.1 | - | - | - | - | 0.05 | 0.15 | Remainder |

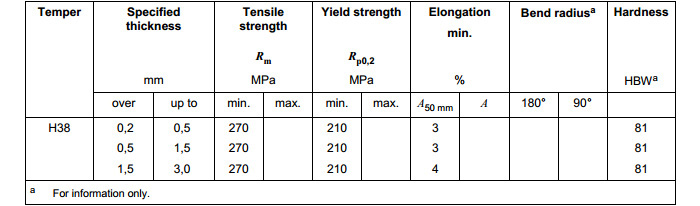

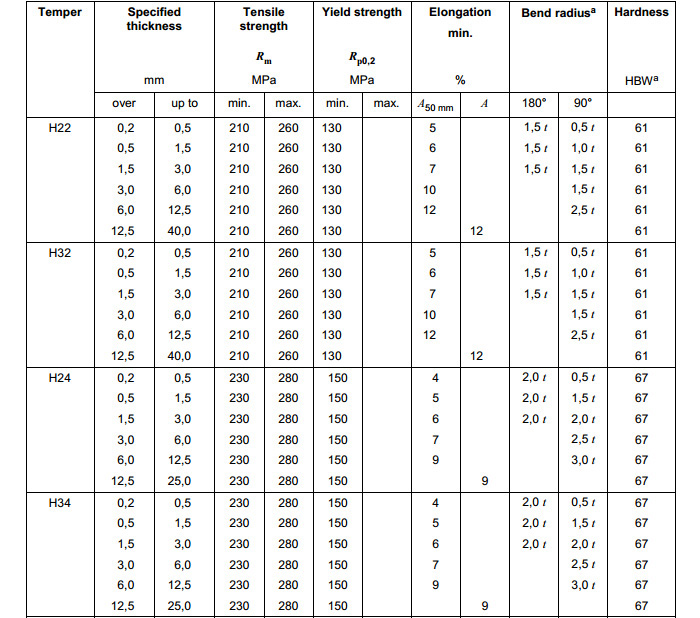

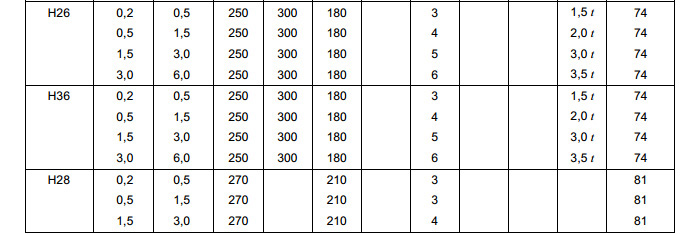

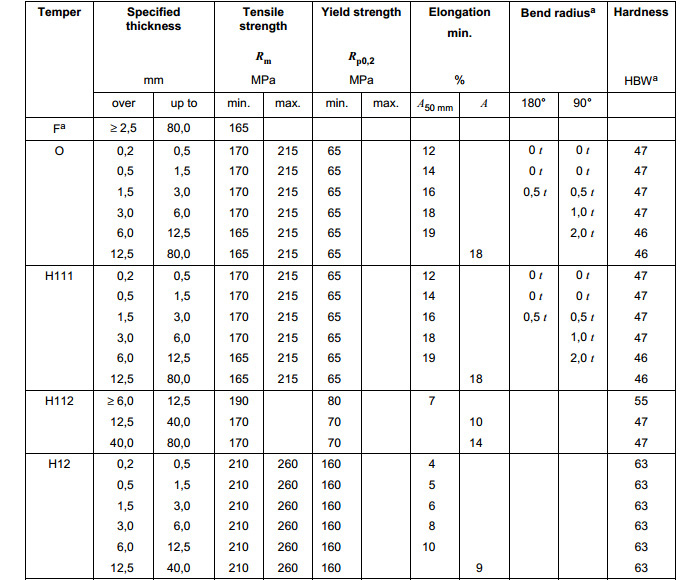

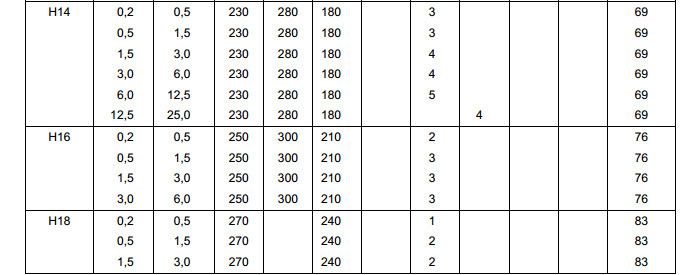

Mechanical Properties - 5052 Aluminium Coil Strip
5052 Aluminium Coil Strip Product Tolerance Requirement
Total weight: +/-10%
Thickness:+/-1%
Width:+2/-0mm
Length:+3/-0mm
5052 Aluminium Coil Strip Feature
1.medium tenacity
2.Good corrosion resistance
3.lower density
4.high tensile strength
5.high elongation
5052 Aluminium Coil Strip Purpose
1.Widely used in making conductor,cookware,dash board,flooring,shell,building trim,construction materials,voiture materials.
2.used in construction material and building material.Including:roof panel,ceiling,in-wall,partition wall,shutters,window blind,gate,balcony,wall,road marking,street signs,road protecting plate,highway protecting plate,bridge of barrier wall,scaffold,ship plate,etc.
