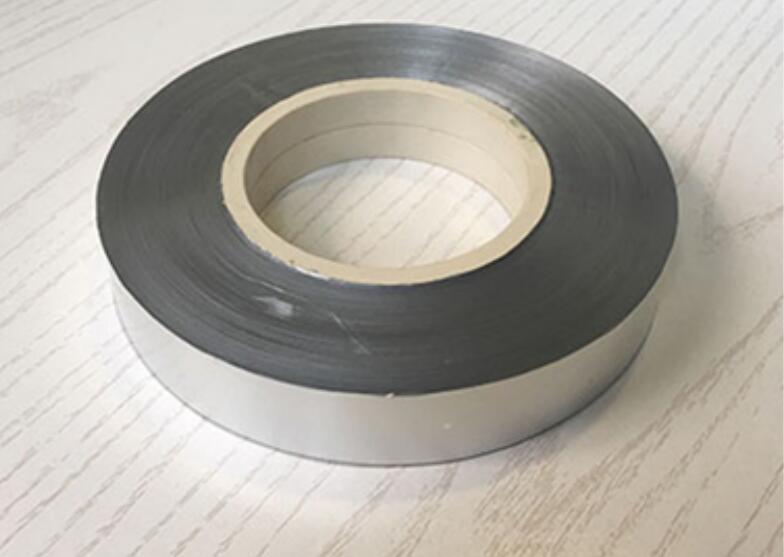

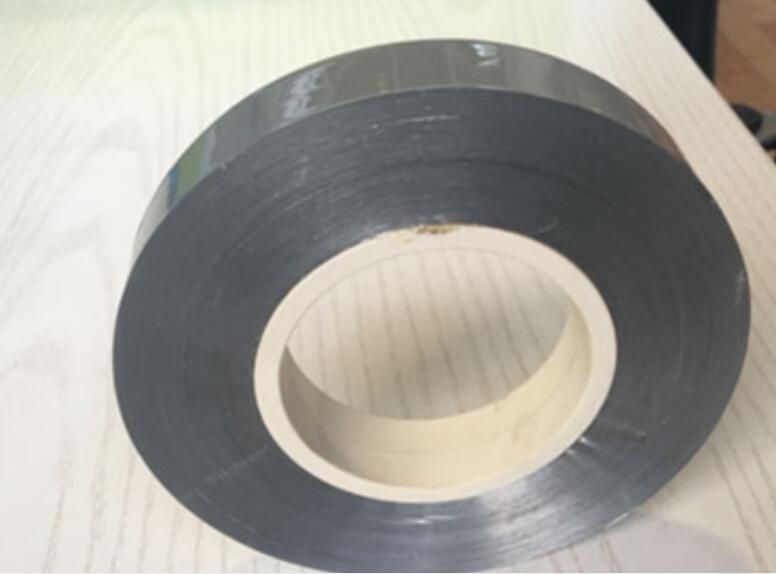

Mylar aluminum foil tape

The Mylar aluminum foil tape produced by Henan signi aluminum uses high-quality electronic aluminum foil, genuine electronic insulating Mylar film and special compound adhesive for high temperature resistant metal. It is made by baking, drying and cutting at high temperature.
Signi aluminum can produce single-sided Mylar aluminum foil tape and double-sided Mylar aluminum foil tape. Welcome to contact us.
advantage
1. Low cost
2. High quality calendered electronic aluminum foil, base material of genuine electronic insulating PET film
3. Good electronic signal shielding and insulation
4. It is widely used and convenient to use
5. Comply with RoHS and reach environmental protection specifications
application
1. EMI shielding materials mainly used for communication, power and electronic wires and cables, such as computer wires, telephone wires, signal wires, coaxial cables, network wires, etc
2. Other industries: air duct, printing and packaging, real estate, etc

Specifications

Thickness	WIDTH	LONGNESS	diameter	Central spindle
0.01mm-0.3mm	3mm-1300mm	1000m-30000m	100mm-1000mm	52mm/76mm


Conventional natural color, blue, red, green, copper, etc., different colors can be produced according to the requirements




Packing

Plate (piece) or barrel (shaft)
Plate (piece) installation: large outer diameter 1000mm
Barrel (shaft) installation: regular 300mm (length) × 300mm (height)
Different shaft sizes can be produced as required

Product parameters


NO.	THICKNESS	Proportion（g/m2）	density (m2/kg)
AL9 PET12	24    mic	44	22.7
AL9 PET15	27    mic	48	20.8
AL9 PET19	31    mic	54	18.5
AL9 PET23	35    mic	60	16.7
AL12 PET12	27    mic	53	18.9
AL12 PET15	30    mic	57	17.5
AL12 PET19	34    mic	62	16.1
AL12 PET23	38    mic	68	14.7
AL12 PET36	51    mic	88	11.4
AL15 PET19	37    mic	70	14.3
AL25 PET12	40    mic	88	11.4
AL25 PET23	51    mic	103	9.7
AL40 PET12	55    mic	128	7.8
AL40 PET15	58    mic	132	7.6
AL40 PET23	66    mic	144	6.9
AL40 PET36	79    mic	162	6.2
AL50 PET12	65    mic	155	6.5
AL50 PET15	68    mic	160	6.3
AL50 PET23	76    mic	171	5.8
AL50 PET36	89    mic	189	5.3



NO.	THICKNESS	Proportion（g/m2）	density (m2/kg)
AL9 PET12 AL9	35    mic	70	14.3
AL9 PET15 AL9	38    mic	75	13.3
AL9 PET19 AL9	42    mic	80	12.5
AL9 PET23 AL9	46    mic	86	11.6
AL12 PET15 AL12	44    mic	91	11
AL12 PET23 AL12	52    mic	102	9.8
AL20 PET12 AL20	57    mic	130	8
AL25 PET12 AL25	67    mic	157	6
