1060 O transformer aluminum strip

Author:Frank  Time:2023-05-21

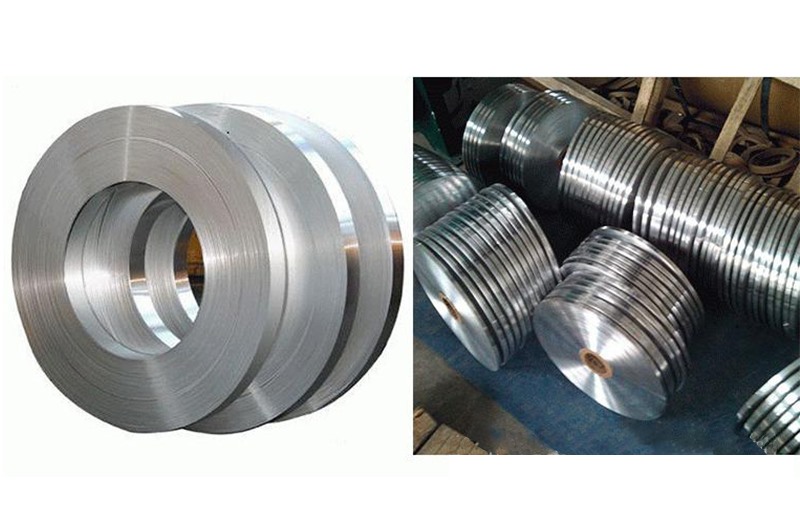

1060 O transformer aluminum strip

Factory:

Specification:

Quantity:

Detail


1060 O transformer aluminum strip has a high aluminum content (usually above 99.6%-99.7%), and the electrical and thermal conductivity of aluminum is only lower than that of conventional metals of copper. The electrical conductivity of the metal is in order: silver, copper, gold, aluminum, nickel, steel alloy. Since the price of copper is much higher than that of aluminum, the most commonly used material for transformer belts is aluminum belt. Transformer aluminum strip grades mainly include A1060 (O), 1060 O transformer aluminum strip is mainly used in the high and low voltage windings of dry-type transformers as conductive materials. The chemical composition of the aluminum strip conforms to GB/T 3190-1996 "Chemistry of deformed aluminum and aluminum alloys" The regulations, technical requirements and mechanical properties of "Composition" meet the technical requirements for supply of finished aluminum foil for coils of TUN900 069 1998 edition. Transformer aluminum aluminum strip, mainly used in large transformers, solar energy, and power industries.
Uses: Aluminum strip and aluminum foil for dry-type transformers
Material: 1060-O
Thickness: 0.2mm--3.0mm, width: 20mm-1650mm.
Description: Smooth surface, no scratches. The edges can be chamfered (rounded corners, rounded edges), without burrs, which is better than the national standard. The resistivity is less than or equal to 0.028.
Packing: wooden pallet, inner diameter 300mm or 500mm.
The transformer aluminum belt uses high-purity aluminum as the raw material, and the aluminum content can reach more than 99.6%, which has the unparalleled conductivity of other series of aluminum belts.
Transformer aluminum strip application
The application of 1060 O transformer aluminum strip can make dry-type transformers have the advantages of small size, light weight, good insulation performance, flame retardant, no pollution, low partial discharge, moisture resistance, stable and reliable operation, low noise, low maintenance cost, etc. It is widely used in high-rise buildings, underground facilities, commercial centers, residential areas, hotels and wet coastal areas.
